Main Types of Magnetostrictive Position Sensors

Views: 50     Author: Site Editor     Publish Time: 2025-07-04      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

The Magnetostrictive Position (Level) Sensor utilizes the magnetostrictive principle and generates a strain pulse signal through the intersection of two different magnetic fields to accurately measure the position.

The measuring element is a waveguide tube, and the sensitive element inside the waveguide tube is made of special magnetostrictive materials.

-Waveguide Tube: The primary sensing element, containing a specially designed magnetostrictive material.

-Moving Magnet (Position Magnet): A permanent magnet ring that slides along the waveguide tube, representing the measured position.

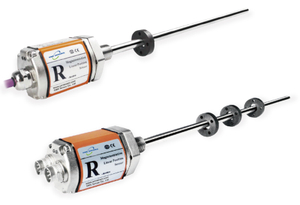

ORR-RH Series Magnetostrictive Position Sensor-CANBus Output-PIC


Below are the main types of Magnetostrictive Position Sensors, categorized by Output Signal & Mechanical Structure.


(A)  Classification by Output Signal

Analog Output

4–20mA / 0–10V: Standard signals for industrial PLCs and control systems.

0–5V / ±10V: Commonly used in servo systems and motion control applications.

Digital Output

SSI (Synchronous Serial Interface): Provides high resolution and noise immunity, ideal for CNC machinery.

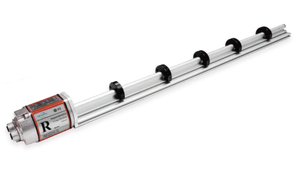

CANopen / Profibus / IO-Link: Designed for smart factories and Industry 4.0 implementations.

RS485 / Modbus: Facilitates long-distance communication in distributed control systems.

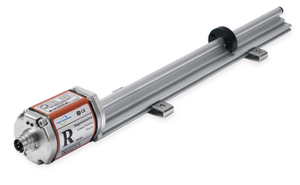

ORR-RP Series Magnetostrictive Position Sensor-SSI Output-pic



(B)  Classification by Mechanical Structure

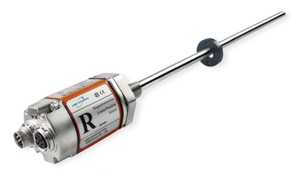

Rod-type (Linear Configuration)

Features a waveguide rod enclosed within a stainless steel tube.

Typically used in hydraulic cylinders, press machines, and injection molding equipment.

Tape-type (Flexible Waveguide)

Incorporates a flexible waveguide for curved-path or space-constrained installations.

Frequently employed in mobile machinery and agricultural equipment.

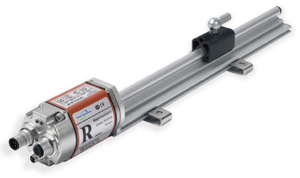

Externally Mounted (Non-intrusive Design)

The position magnet moves along the exterior of the sensor, eliminating direct media contact.

                        Particularly suited for harsh operating environments (e.g., high-pressure systems, corrosive fluids).
