Magnetostrictive Position Sensor
Magnetostrictive position measurement with magnetostrictive technology, bases on principle of pulse variation due to position variation.
Magnetostrictive position sensors are non-contact linear position sensors, magnet ring doesn't contact with thewaveguid, sensing position by magnetic pulse, thus free from wear, no downtimes, a long service life, and high resolution up to 0.005mm. they guarantee a high machine and system availability, widely used in high reliability and precision are demanded in position measurement.

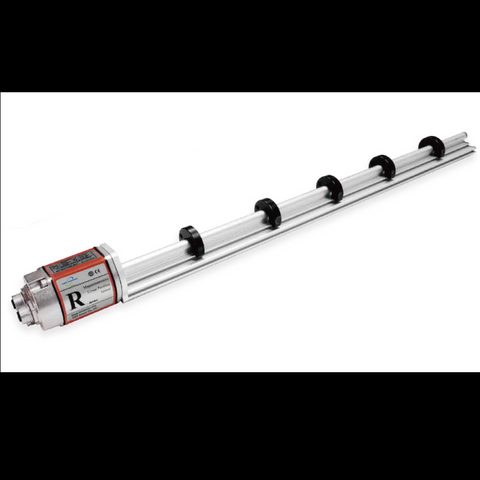

Profile version High resolution of up to 1 µm Stroke length of up to 5500 mm (Customizable) Measures several positions and speeds at the same time Programmable output signals – invert, configure, and document the measurement range Latest magnetostrictive technology with innovative smart diagnostics for industrial applications Non-contacting, thus free from wear – no downtimes and a long service life Expanded measuring with multi-magnet technology Profinet output
High resolution of up to 1 µm Stroke length of up to 5500 mm (Customizable) Measures several positions and speeds at the same time Programmable output signals – invert, configure, and document the measurement range Non-contacting, thus free from wear – no downtimes and a long service life Expanded measuring with multi-magnet technology Profibus-DP output
High resolution of up to 1 µm Stroke length of up to 5500 mm (Customizable) IP grade up to IP67 Expanded measuring with multi-magnet technology Latest magnetostrictive technology with innovative smart diagnostics for industrial applications Start/Stop output
High resolution of up to 1 µm Stroke length of up to 5500 mm (Customizable) Measures several positions and speeds at the same time Programmable output signals – invert, configure, and document the measurement range Latest magnetostrictive technology with innovative smart diagnostics for industrial applications Non-contacting, thus free from wear – no downtimes and a long service life Expanded measuring with multi-magnet technology Profinet output
High resolution of up to 1 µm Stroke length of up to 5500 mm (Customizable) Measures several positions and speeds at the same time Programmable output signals – invert, configure, and document the measurement range Non-contacting, thus free from wear – no downtimes and a long service life Expanded measuring with multi-magnet technology CANBus output
